Koaxialadapter

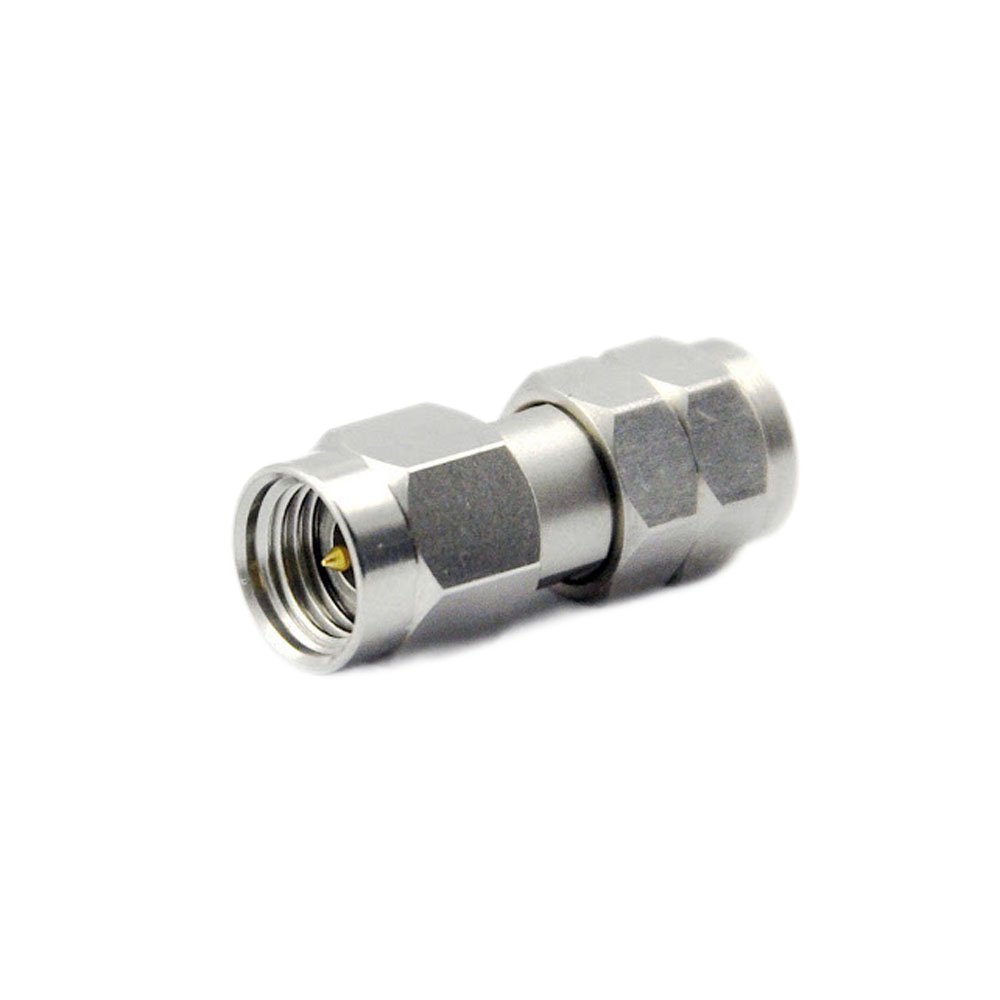

HF-Adapter sind passive Koaxialkomponenten, mit denen Signale von einer Anschluss-Schnittstelle auf eine andere übertragen werden. Psatek bietet ein vollständiges Sortiment an Koaxialadaptern für Hochfrequenzanwendungen. HF-Adapter verfügen über alle branchenüblichen Schnittstellen in Between-Series- und In-Series-Konfigurationen und unterstützen vielfältige Anwendungen. Die Adapter reichen bis 145 GHz: große Vielfalt, Edelstahlausführung, lange Lebensdauer. Weitere Informationen und Preise erhalten Sie vom Vertriebsteam (sales@psatek.com).

    Straight Coaxial Adapters


    MODEL NUMBER Connector 1 Connector 2
    Frequency Range
    (GHz)
    		Datasheets
    PCA08M08M 0.8mm male 0.8mm male DC~145
    PCA08F08F female female
    PCA08M08F male male
    PCA1M1M 1.00mm male 1.00mm male DC~110
    PCA1F1F female female
    PCA1M1F male female
    PCA1MVM 1.00mm male 1.85mm male DC~67
    PCA1MVF male female
    PCA1FVF female female
    PCA1FVM female male
    PCAVMVM 1.85mm male 1.85mm male DC~67
    PCAVMVF male female
    PCAVFVF female female
    PCAVMXM 1.85mm male SMPM male DC~67
    PCAVFXF female female
    PCAVM2M 1.85mm male 2.4mm male DC~50
    PCAVM2F male female
    PCAVF2M female male
    PCAVF2F female female
    PCA2M2M 2.4mm male 2.4mm male DC~50
    PCA2M2F male female
    PCA2F2F female female
    PCAVMKM 1.85mm male 2.92mm male DC~40
    PCAVMKF male female
    PCAVFKM female male
    PCAVFKF female female
    PCAXM2M SMPM male 2.4mm male DC~40
    PCAXM2F male female
    PCAXF2M female male
    PCAXF2F female female
    PCAXMKM SMPM male 2.92mm male DC~40
    PCAXMKF male female
    PCAXFKM female male
    PCAXFKF female female
    PCA2MKM 2.4mm male 2.92mm male DC~40
    PCA2MKF male female
    PCA2FKM female male
    PCA2FKF female female
    PCAKMKM 2.92mm male 2.92mm male DC~40
    PCAKMKF male female
    PCAKFKF female female
    PCAKMPM 2.92mm male SMP male DC~40
    PCAKMPF male female
    PCAKFPM female male
    PCAKFPF female female
    PCA2MPM 2.4mm male SMP male DC~40
    PCA2MPF male female
    PCA2FPM female male
    PCA2FPF female female
    PCAVM3M 1.85mm male 3.5mm male DC~33
    PCAVM3F male female
    PCAVF3M female male
    PCAVF3F female female
    PCA2M3M 2.4mm male 3.5mm male DC~33
    PCA2F3F female female
    PCA2F3M female male
    PCA2M3F male female
    PCAKM3M 2.92mm male 3.5mm male DC~33
    PCAKF3F female female
    PCAKM3F male female
    PCAKF3M female male
    PCA3M3M 3.5mm male 3.5mm male DC~33
    PCA3M3F male female
    PCA3F3F female female
    PCAXMSM SMPM male SMA male DC~26.5
    PCAXMSF male female
    PCAXFSM female male
    PCAXFSF female female
    PCAAMAM SSMA male SSMA male DC~26.5
    PCAAFAF female female
    PCAPMSM SMP male SMA male DC~26.5
    PCAPMSF male female
    PCAPFSM female male
    PCAPFSF female female
    PCAAMSM SSMA male SMA male DC~26.5
    PCAAMSF male female
    PCAAFSM female male
    PCAAFSF female female
    PCASMSM SMA male SMA male DC~26.5
    PCASMSF male female
    PCASFSF female female
    PCA2MNM 2.4mm male N male DC~18
    PCA2MNF male female
    PCA2FNM female male
    PCA2FNF female female
    PCAKMNM 2.92mm male N male DC~18
    PCAKMNF male female
    PCAKFNM female male
    PCAKFNF female female
    PCA3MNM 3.5mm male N male DC~18
    PCA3MNF male female
    PCA3FNM female male
    PCA3FNF female female
    PCASMNM SMA male N male DC~18
    PCASMNF male female
    PCASFNM female male
    PCASFNF female female
    PCASMTM SMA male TNC male DC~18
    PCASMTF male female
    PCASFTM female male
    PCASFTF female female
    PCASMQM SMA male QMA male DC~18
    PCASFQM female male
    PCASMQF male female
    PCASFQF female female
    PCASMEM SMA male BMA male DC~18
    PCASFEM female male
    PCASMEF male female
    PCASFEF female female
    PCANMNM N male N male DC~18
    PCANMNF male female
    PCANFNF female female
    PCATMNM TNC male N male DC~18
    PCATFNM female male
    PCATMNF male female
    PCATFNF female female
    PCATMTM TNC male TNC male DC~18
    PCATMTF male female
    PCATFTF female female
    PCANM7M N male 7/16 DIN male DC~7.5
    PCANM7F male female
    PCANF7M female male
    PCANF7F female female
    PCASMBM SMA male BNC male DC~6
    PCASMBF male female
    PCASFBM female male
    PCASFBF female female
    PCASFGM SMA female SMB male DC~6
    PCASFGF female female
    PCASMQM SMA male QMA male DC~6
    PCASMQF male female
    PCASFQM female male
    PCASFQF female female
    PCASFYF SMA female MMCX female DC~6
    PCASFBM SMA male BNC male DC~6
    PCANM7M N male 7/16 DIN male DC~6
    PCANM7F male female
    PCANF7M female male
    PCANF7F female female
    PCANMBM N male BNC male DC~6
    PCANMBF male female
    PCANFBM female male
    PCANFBF female female
    PCASMBM SMA male BNC male DC~4
    PCASMBF male female
    PCASFBM female male
    PCASFBF female female


    Right Angle Coaxial Adapters


    Model Number Connector 1 Connector 2
    Frequency
    (GHz)
    PCAVFVF-R 1.85mm female 1.85mm female DC~67
    PCAVMVF-R male female
    PCAVMVM-R male male
    PCAVM2M-R 1.85mm male 2.4mm male DC~50
    PCAVM2F-R male female
    PCAVF2M-R female male
    PCAVF2F-R female female
    PCA2M2M-R 2.4mm male 2.4mm male DC~50
    PCA2M2F-R male female
    PCA2F2F-R female female
    PCAVMKM-R 1.85mm male 2.92mm male DC~40
    PCAVMKF-R male female
    PCAVFKM-R female male
    PCAVFKF-R female female
    PCA2MKM-R 2.4mm male 2.92mm male DC~40
    PCA2MKF-R male female
    PCA2FKM-R female male
    PCA2FKF-R female female
    PCAKMKM-R 2.92mm male 2.92mm male DC~40
    PCAKMKF-R male female
    PCAKFKF-R female female
    PCAVM3M-R 1.85mm male 3.5mm male DC~33
    PCAVM3F-R male female
    PCAVF3M-R female male
    PCAVF3F-R female female
    PCA2M3M-R 2.4mm male 3.5mm male DC~33
    PCA2M3F-R male female
    PCA2F3M-R female male
    PCA2F3F-R female female
    PCAKM3M-R 2.92mm male 3.5mm male DC~33
    PCAKM3F-R male female
    PCAKF3M-R female male
    PCAKF3F-R female female
    PCA3M3M-R 3.5mm male 3.5mm male DC~33
    PCA3M3F-R male female
    PCA3F3F-R female female
    PCASMSM-R SMA male SMA male DC~18
    PCASMSF-R male female
    PCASFSF-R female female
    PCANMNM-R N male N male DC~18
    PCANMNF-R male female
    PCANFNF-R female female




    ---------------------------------- Coaxial Adapters ✬ 4 Hole Panel Mount ----------------------------------


    Model Number Connector1 Connector2
    Frequency
    (GHz)
    PCA1F1F-PM4 1.00mm female 1.00mm female DC~110
    PCAVFVF-PM4 1.85mm female 1.85mm female DC~67
    PCA2F2F-PM4 2.4mm female 2.4mm female DC~50
    PCAKFKF-PM4 2.92mm female 2.92mm female DC~40
    PCAKFPM-PM4 2.92mm female SMP male DC~40
    PCA3F3F-PM4 3.5mm female 3.5mm female DC~33
    PCASMSF-PM4 SMA male SMA female DC~26.5
    PCASFSF-PM4 SMA female SMA female DC~26.5
    PCASFNF-PM4 SMA female N female DC~18
    PCASFNM-PM4 SMA female N male DC~18
    PCASFTF-PM4 SMA female TNC female DC~18
    PCASFEM-PM4 SMA female BMA male DC~18
