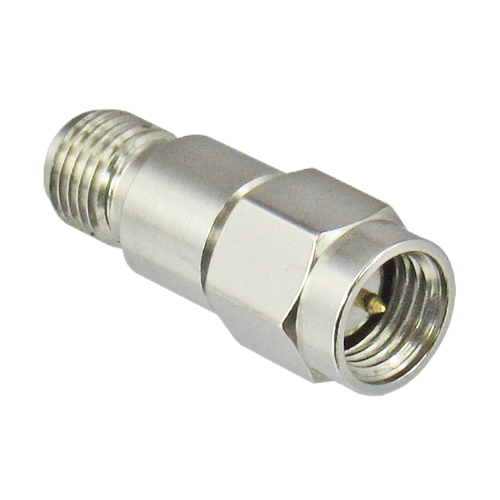

Festes Dämpfungsglied, niedrige Leistung

In manchen Modulen oder HF-Systemen kann ein Dämpfungsglied die Ausgangsleistung reduzieren, ohne die Signalform oder die Daten zu stören oder zu verändern, wenn die Ausgangsleistung zu hoch ist und das System oder die Geräte beschädigen könnte. Ein Dämpfungsglied verbessert nicht nur die Impedanzanpassung und sichert die Zuverlässigkeit der Schaltung, sondern kann auch zur Pegelanpassung zwischen zwei unterschiedlichen Schaltungen oder Geräten eingesetzt werden. Psatek liefert feste Dämpfungsglieder von 1 W bis 500 W im Frequenzbereich von DC bis 67 GHz mit verschiedenen Anschlüssen zur Auswahl. Bitte kontaktieren Sie das Vertriebsteam (sales@psatek.com) für ein Angebot.

    2W Fixed Attenuators


    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    3 6 10 20 - -
    PFA26V1-XX DC~26.5 1.5 1.5 1.5 2.0 - - 1.35 1.85mm
    PFA50V1-XX 26.5~50 1.5 1.5 1.5 2.0 - - 1.55 1.85mm
    PFA67V1-XX 50~67 1.5 1.5 1.5 2.0 - - 1.65 1.85mm
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 40 50
    PFA06S2-XX DC~6 0.3 0.2 0.2 0.5 0.3 0.5 1.15 SMA
    PFA08S2-XX DC~8 0.5 0.3 0.3 0.3 0.5 0.5 1.2 SMA
    PFA12S2-XX DC~12.4 0.5 0.4 0.4 0.4 0.7 0.7 1.25 SMA
    PFA18S2-XX DC~18 0.5 0.5 0.5 0.5 1.0 1.0 1.3 SMA
    PFA26S2-XX DC~26.5 1.0 1.0 1.0 1.0 1.0 1.0 1.35 SMA
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    - - 60 70 80 90
    PFA04S2-XX DC~4 - - 0.8 1.0 1.5 1.5 1.15 SMA
    PFA08S2-XX DC~8 - - 1.0 1.0 1.5 1.5 1.2 SMA
    PFA12S2-XX DC~12.4 - - 1.0 1.2 2.0 2.0 1.25 SMA
    PFA18S2-XX DC~18 - - 1.5 1.5 2.0 2.0 1.35 SMA
    PFA26S2-XX DC~26.5 - - 2.0 2.0 - - 1.4 SMA
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10~19 20 30 40 -
    PFA26K2-XX DC~26.5 0.8 0.8 -0.8/+1.0 -0.8/+1.0 0.8 - 1.25 2.92mm
    PFA32K2-XX DC~32 0.8 0.8 1.0 1.0 1.5 - 1.3 2.92mm
    PFA40K2-XX DC~40 1.0 1.0 1.5 1.5 2.0 - 1.4 2.92mm
    PFA40K2-XX-F DC~40 1.0 1.0 -1.0/+1.5 -1.0/+1.5 - - 1.35 2.92mm
    Model Number

    Freq. Range
    (GHz)

    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 40 -
    PFA2622-XX DC~26.5 0.5 0.6 0.8 1.0 1.2 - 1.25 2.4mm
    PFA3222-XX DC~32 1.0 1.0 1.0 1.4 1.5 - 1.3 2.4mm
    PFA4022-XX DC~40 1.0 1.5 1.5 1.5 - - 1.45 2.4mm
    PFA4222-XX DC~42 1.0 1.5 1.5 1.5 - - 1.45 2.4mm
    PFA4522-XX DC~45 1.0 1.5 1.5 1.5 - - 1.45 2.4mm
    PFA5022-XX DC~50 1.0 1.5 1.5 1.5 - - 1.45 2.4mm
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    3 6 10 20 30 -
    PFA1822-XX DC~18 -0.5/-0.8 -0.3/-0.8 -0.4/-0.8 -0.5/-0.8 -0.5/-1.0 - 1.26 2.4mm
    PFA26XX-22 DC~26.5 -0.2/-0.8 -0.1/-0.8 -0.3/-0.8 -0.8/+0.3 -1.0/+0.3 - 1.3 2.4mm
    PFA40XX-22 DC~40 -0.3/-0.8 -0.1/+0.5 -0.8/+0.5 -1.0/+0.9 -1.0/+0.9 - 1.3 2.4mm
    PFA42XX-22 DC~42 -0.8/+1.0 -0.8/+1.5 -0.8/+1.0 -0.8/+1.0 ±1.0 - 1.35 2.4mm
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10~19 20~30 40 50 60, 70
    PFA1232-XX DC~12.4 0.5 0.6 0.6 0.7 1.0 1.0 1.15 3.5mm
    PFA1832-XX DC~18 0.6 0.7 0.8 1.0 1.0 1.0 1.2 3.5mm
    PFA2632-XX DC~26.5 1.0 1.0 1.0 1.5 1.5 1.0 1.25 3.5mm
    Model Number Freq. Range
    (GHz)     		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 - -
    PFA08A2-XX DC~8 0.6 0.5 0.7 0.8 - - 1.25 SSMA
    PFA12A2-XX DC~12.4 0.6 0.5 0.8 0.8 - - 1.35 SSMA
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 40 50
    PFA04T2-XX DC~4 0.3 0.3 0.3 0.3 - - 1.15 TNC
    PFA06T2-XX DC~6 0.5 0.4 0.4 0.5 0.6 0.6 1.2 TNC
    PFA06N2-XX N
    PFA08T2-XX DC~8 0.5 0.4 0.4 0.5 0.6 0.6 1.2 TNC
    PFA08N2-XX N
    PFA12T2-XX DC~12.4 0.7 0.7 0.7 0.7 0.8 0.8 1.25 TNC
    PFA12N2-XX N
    PFA18T2-XX DC~18 1.2 1.0 1.2 1.2 1.2 1.2 1.3 TNC
    PFA18N2-XX N
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    40 50 60 70 80 90
    PFA04XX-T2 DC~4 0.75 0.75 0.75 1.0 1.0 1.5 1.2 TNC
    PFA04XX-N2 N
    PFA08XX-T2 DC~8 0.75 0.75 0.8 1.0 1.0 1.5 1.25 TNC
    PFA08XX-N2 N
    PFA12XX-T2 DC~12.4 1.25 1.25 1.0 1.2 1.2 2 1.3 TNC
    PFA12XX-N2 N
    PFA18XX-T2 DC~18 1.5 1.5 1.5 1.5 2 2.5 1.35 TNC
    PFA18XX-N2 N


    5W Fixed Attenuators


    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    3, 6 10 20 30 40 50
    PFA03S5-XX DC~3 0.3 0.3 0.3 0.4 0.4 0.5 1.15 SMA
    PFA04S5-XX DC~4 0.3 0.3 0.3 0.4 0.4 0.5 1.15 SMA
    PFA06S5-XX DC~6 0.4 0.4 0.4 0.5 0.5 0.5 1.2 SMA
    PFA08S5-XX DC~8 0.4 0.4 0.4 0.5 0.5 0.5 1.2 SMA
    PFA12S5-XX DC~12.4 0.5 0.5 0.5 0.5 0.5 0.5 1.25 SMA
    PFA18S5-XX DC~18 0.8 1.0 1.0 1.0 1.0 1.0 1.3 SMA
    PFA26S5-XX DC~26.5 1.0 1.0 1.5 1.5 1.5 1.5 1.35 SMA
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 40 -
    PFA26K5-XX DC~26.5 0.8 0.8 0.8 -0.8/+1.0 1.0 - 1.25 2.92mm
    PFA32K5-XX DC~32 0.8 0.8 0.8 1.0 1.5 - 1.3 2.92mm
    PFA40K5-XX DC~40 1.0 1.0 1.0 1.5 2.0 - 1.4 2.92mm
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 40 -
    PFA2625-XX DC~26.5 0.8 0.6 0.8 1.0 1.2 - 1.2 2.4mm
    PFA3225-XX DC~32 1.0 1.0 1.0 1.4 1.5 - 1.3 2.4mm
    PFA4025-XX DC~40 1.0 1.0 1.5 1.5 2.0 - 1.4 2.4mm
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10~19 20~30 40 50 60
    PFA1235-XX DC~12.4 0.6 0.5 0.5 -0.5/+0.7 1.0 1.5 1.15 3.5mm
    PFA1835-XX DC~18 0.8 0.8 0.8 -0.5/+1.0 -1.0/+1.2 -1.0/+1.5 1.2 3.5mm
    PFA2635-XX DC~26.5 1.0 -0.5/+1.2 -0.5/+1.2 -0.5/+1.5 -0.5/+1.5 -0.5/+1.5 1.25 3.5mm
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    1~9 10 20 30 40 50
    PFA04T5-XX DC~4 0.3 0.3 0.3 0.3 - - 1.15 TNC
    PFA06T5-XX DC~6 0.5 0.4 0.4 0.5 0.6 0.6 1.3 TNC
    PFA06N5-XX N
    PFA08T5-XX DC~8 0.5 0.4 0.4 0.5 0.6 0.6 1.3 TNC
    PFA08N5-XX N
    PFA12T5-XX DC~12.4 0.7 0.7 0.7 0.7 0.75 0.75 1.35 TNC
    PFA12N5-XX N
    PFA18T5-XX DC~18 0.8 1.0 1.2 1.2 1.2 1.2 1.4 TNC
    PFA18N5-XX N
    Model Number
    Freq. Range
    (GHz)
    		Attenuation Value(dB)/Tolerance(±dB)
    VSWR
    Max
    		Connector
    40 50 60 70 80 90
    PFA04XX-T5 DC~4 0.75 0.75 0.75 1.0 1.0 1.5 TNC
    PFA08XX-T5 DC~8 0.75 0.75 0.8 1.0 1.0 1.5 TNC
    PFA12XX-T5 DC~12.4 1.25 1.25 1.0 1.2 1.2 2.0 TNC
    PFA18XX-T5 DC~18 1.5 1.5 1.5 1.5 2.0 2.5 TNC
