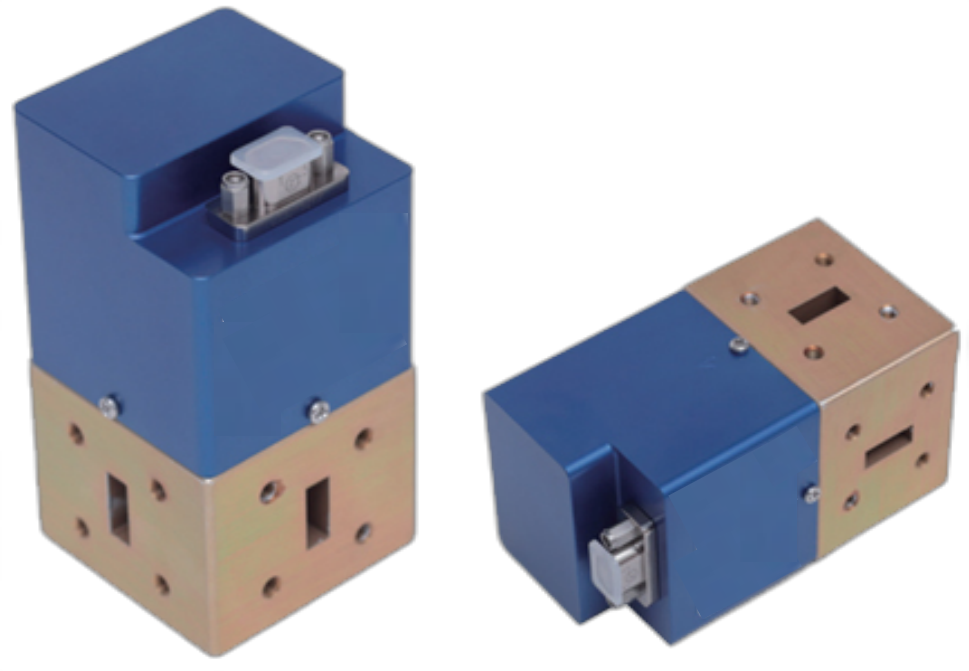

Hohlleiterschalter

    Waveguide Electromechanical & Manual Switches


    Model
    Number
    Switch
    Type
    		Actuator Control
    Frequency Range
    (GHz)
    VSWR
    (max)
    Insertion Loss
    (dB,max.)
    Switching Speed
    (mSEC, Max.)
    Life
    (Cycles)
    Isolation
    (dB, min)
    		Waveguide Type
    Flange
    Type
    Voltage
    (Vdc)
    		Material
    IEC EIA
    PWGS10 SPDT/DPDT Latching
    Manual/
    Electrical
    		75~110 1.25 0.6 60 0.1M 50 BJ900 WR10 FUGP 12, 24, 28 Al
    PWGS12 SPDT/DPDT Latching
    Manual/
    Electrical
    		60~90 1.25 0.5 60 0.1M 50 BJ740 WR12 FUGP 12, 24, 28 Al
    PWGS15 SPDT/DPDT Latching
    Manual/
    Electrical
    		50~70 1.2 0.4 60 0.1M 50 BJ620 WR15 FUGP 12, 24, 28 Al
    PWGS19 SPDT/DPDT Latching
    Manual/
    Electrical
    		39.2~59.6 1.2 0.35 60 0.1M 55 BJ500 WR19 FUGP 12, 24, 28 Al
    PWGS22 SPDT/DPDT Latching
    Manual/
    Electrical
    		32.9~50.1 1.15 0.35 60 0.1M 50 BJ400 WR22 FUGP 12, 24, 28 Al
    PWGS28 SPDT/DPDT Latching
    Manual/
    Electrical
    		26.5~40 1.2 0.2 60 0.1M 55 BJ320 WR28 FBP 12, 24, 28 Al
    PWGS34 SPDT/DPDT Latching
    Manual/
    Electrical
    		22~33 1.15 0.15 60 0.1M 60 BJ260 WR34 FBP 12, 24, 28 Al
    PWGS42 SPDT/DPDT Latching
    Manual/
    Electrical
    		18~26.5 1.15 0.15 60 0.1M 60 BJ220 WR42 FBP 12, 24, 28 Al
    PWGS51 SPDT/DPDT Latching
    Manual/
    Electrical
    		15~22 1.15 0.15 60 0.1M 60 BJ180 WR51 FBP 12, 24, 28 Al
    PWGS62 SPDT/DPDT Latching
    Manual/
    Electrical
    		12.4~18 1.15 0.15 60 0.1M 60 BJ140 WR62 FBP 12, 24, 28 Al
    PWGS75 SPDT/DPDT Latching
    Manual/
    Electrical
    		10~15 1.15 0.15 60 0.1M 60 BJ120 WR75 FBP 12, 24, 28 Al
    PWGS90 SPDT/DPDT Latching
    Manual/
    Electrical
    		8.2~12.4 1.15 0.15 60 0.1M 60 BJ100 WR90 FBP 12, 24, 28 Al
    PWGS112 SPDT/DPDT Latching
    Manual/
    Electrical
    		7.05~10 1.15 0.15 60 0.1M 60 BJ84 WR112 FBP 12, 24, 28 Al
    PWGS137 SPDT/DPDT Latching
    Manual/
    Electrical
    		5.85~8.2 1.15 0.15 60 0.1M 60 BJ70 WR137 FDP 12, 24, 28 Al
    PWGS159 SPDT/DPDT Latching Electrical 4.64~7.05 1.15 0.15 80 0.1M 70 BJ58 WR159 FDP 24 Al
    PWGS187 SPDT/DPDT Latching Electrical 3.94~5.99 1.1 0.1 150 0.1M 70 BJ48 WR187 FDP 24 Al
    PWGS229 SPDT/DPDT Latching Electrical 3.22~4.9 1.1 0.1 150 0.1M 70 BJ40 WR229 FDP 24 Al
    PWGS284 SPDT/DPDT Latching Electrical 2.6~3.95 1.1 0.1 300 0.1M 70 BJ32 WR284 FDP 24 Al
    PWGS430 SPDT/DPDT Latching Electrical 1.72~2.61 1.1 0.1 300 0.1M 70 BJ22 WR430 FDP 24 Al

    ❆ Operating Temperature: -20℃~+70℃ ❆
